পেশাদার তরল পানীয় যন্ত্রপাতি প্রস্তুতকারক ভর্তি এবং বোঁচকা
Place of Origin: | CHINA,MAINLAND |
পরিচিতিমুলক নাম: | JIAYUAN |
সাক্ষ্যদান: | CE,SGS |
Model Number: | RCGF |
Minimum Order Quantity: | 1 set |
---|---|
মূল্য: | USD 5000-64000 set |
Packaging Details: | wooden |
Delivery Time: | 30 work days |
Payment Terms: | T/T |
Supply Ability: | 15 sets per month |
material: | sus 304 | voltage: | customized |
---|---|---|---|
packing material: | wooden | condition: | new |
warranty: | 1year | driven type: | electric |
লক্ষণীয় করা: | juice bottling machine,pet bottle filling line |
CE SGS Certification3000kg Juice Filling Machine , 6000bph Automatic Juice Filling Machinery
Introduction:

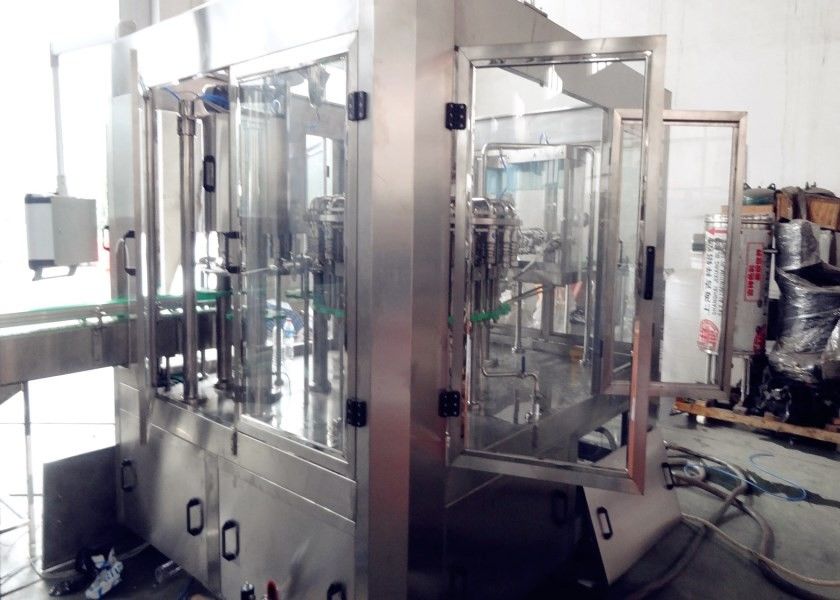

This drinking water filling equipment adopts bottle neck holding transmission technology to realize fully automatic sterilizing, rinsing, filling, and capping. Most elements of the electrical system employ foreign advanced products. Each machine element that contacts with the liquid is made of high quality stainless steel. They obtain the advantages of good abrasive resistance, high stability, low failure rate,etc. The quality of the equipment reaches the international advanced level.
Rinser
1.Rotative rinsing turret one treatment, fixed nozzles, with grippers.
2.The grippers take the bottles from the inlet starwheel while they are still driven by the starwheel, thus guaranteeing a safe grip.
-After the gripping, the bottle is turned upside down and centred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.
Filler
1.The starwheels drive the bottles always "by the neck" through the rinsing, filling and capping steps. For the various types of bottle, it is easy to adjust the structure for the operator by our specialized design.
2. Product bowl is to reduce the loss of heat.
3.If the temperature is low than the setting value, the filling valves will stop and return the last beverage in filling valve to recycle tank and return to UHT again to sterilize with pump.
Capper
1. Rotative capping turrent, suitable to the application of screw plastic caps on PET bottles
2.The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads.
3.The heads are raised and lowered by the action of a follower that is riding on a shaped cam.
Model | RCGF24-24-8 | RCGF32-32-10 | RCGF40-40-12 |
Production Capability(b/h)(500ml) | 10000 | 14000 | 15000-20000 |
Applicable Bottle Type | Bottle DiameterØ50- Ø92mm; Height150-310mm; Volume330-1500ml | ||
Applicable Cap Shape | Plastic Screw Cap | ||
Gas Source Pressure(Mpa) | 0.6 | ||
Gas Consumption(m³/min) | 0.4 | 0.4 | 0.5 |
Total Power(kw) | 7.68 | 9.18 | 9.18 |
Total Weight(kg) | 4000 | 5000 | 5000 |
Dimension(L×W×H)(mm) | 2750*2180*2200 | 3600*2800*3150 | 3600*2800*3150 |
Company Information
Jiayuan company was established in 1997, and for years we have been focusing on the improvement in machinery theory and performance in the food machinery industry. We have such as CE,ISO etc certification.
We are a company integrating scientific research, production and service, and have the best manufacturing facilities and production process, professional staffs, imported facilities of concentration distill series, automatic CIP series, PLC control etc. Now we have been a market leader in the Chinese food machinery industry.
