500 ml Water Bottling Equipment

    • 500 ml Water Bottling Equipment
    • 500 ml Water Bottling Equipment
    • 500 ml Water Bottling Equipment
    • 500 ml Water Bottling Equipment
  • 500 ml Water Bottling Equipment

    পণ্যের বিবরণ:

    Place of Origin: China Mainland
    পরিচিতিমুলক নাম: Jiayuan
    সাক্ষ্যদান: CE,SGS
    Model Number: CGF8-8-3

    প্রদান:

    Minimum Order Quantity: 1 set
    মূল্য: 12000
    Packaging Details: Seaworthy Wooden Case
    Delivery Time: 30 days
    Payment Terms: T/T; L/C
    Supply Ability: 10 sets/month
    এখন যোগাযোগ
    বিস্তারিত পণ্যের বর্ণনা
    Application: Liquid|Soda|Beverage|Juice Automatic Grade: Auto
    Bottle Type: PET|Can|Barrel Capacity: 500 ml
    Driven Type: Ectric|PLC Material: SS304
    Product name: Water Filling Machine
    বিশেষভাবে তুলে ধরা:

    liquid bottle filling machine

    ,

    নিজের মনের মধ্যে উপকরণ জল

    500 ml Water Bottling Equipment





    Quick Detail:



    1. Product: CGF8-8-3 water filling machine manufacturer

    2. Main Material: SS304

    3. Production capacity: 3000bph(500ml)

    4. Usage: Fill pure/mineral/distilled water and so on

    5. Dimension: 1900*1400*2200mm

    6. Warranty: 1year free

    CGF8-8-3 water filling machine manufacturer





    Description:



    CGF8-8-3 water filling machine manufacturer

    1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.

    2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.

    3. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.

    4. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan'sMitsubishi, France Schneider, OMRON





    Application:


    This machine is designed for bottling non-air drinks, such as pure water, mineral water etc, it
    integrates bottle washing, filling and capping into one monobloc unit.





    Specifications:



    CGF8-8-3 water filling machine manufacturer



    1.Electrical elements



    PLC

    MITSUBI

    Frequency converter

    MITSUBI

    Touch screen

    WEINVIEW

    Contactor

    DELIXI

    Cylinder

    Airtac

    Pump

    Nan fang pump

    Switch

    Omron

    Electromotor

    Wannan Motor

    2.Suitable bottle:

    Round or square plastic bottle

    Bottle size

    250-1500ml

    Bottle body:Φ90mm,

    Bottle height H:150-320mm

    Bottle neck diameter:

    Φ20-Φ35mm

    Cap:

    Plastic screw cap

    DiameterΦ25-Φ35mm

    Cap height:15-25mm

    3.Main parameters:



    Production capacity:

    500ml,3000BPH

    Position:

    washer8,filler8,capper3

    Filling temperature:

    Normal filling,gravity filling

    Air pressure:

    0.6mpa(self-prepare)

    4.Motor powder:



    Main motor: 1.5kw

    Capper loading: 0.09kw

    Washing pump: 0.37kw

    Filling pump: 0.37kw

    Convoying motor:0.55kw

    Air conveyor motor:0.75kw





    3) Pictures:

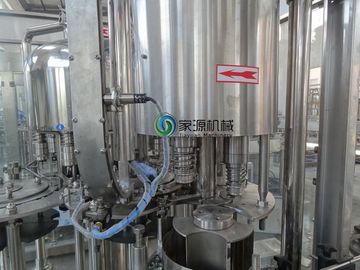

    Washing head



    500 ml Water Bottling Equipment 0

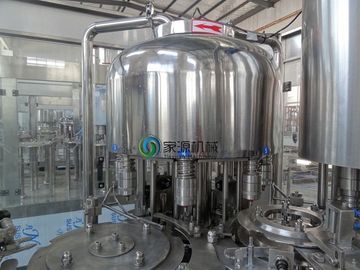

    Filling head



    500 ml Water Bottling Equipment 1

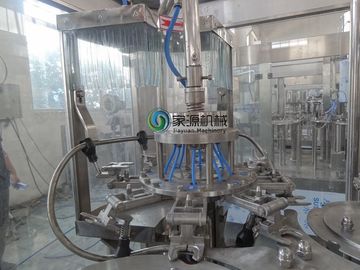

    Capping head



    500 ml Water Bottling Equipment 2





    Competitive Advantage:



    Jiayuan machinery co.,ltd is a professional manufacture of liquid packaging equipment.

    1. The company around 110 KM away from Shanghai, has convenient traffic.

    2. The company was established in 1999, has rich experience.

    3. We are an CE&SGS certified company.

    4. We can produce kind of filling&packing machine, such as

    1. Bottled water production line
    2. Carbonated soft drinks production line
    3. Hot-fill juice and tea production line
    4. 5 Gallon bottled water production line
    5. Water treatment machine and packing machine

    5. Jiayuan machinery co.,ltd can provide turn-key services for customers, from plant layout, equipment manufacturing, production line setup and operators training.
