3 in 1 Water Bottle Filling Machine

    • 3 in 1 Water Bottle Filling Machine
    • 3 in 1 Water Bottle Filling Machine
    • 3 in 1 Water Bottle Filling Machine
    • 3 in 1 Water Bottle Filling Machine
  • 3 in 1 Water Bottle Filling Machine

    পণ্যের বিবরণ:

    Place of Origin: China Mainland
    পরিচিতিমুলক নাম: Jiayuan
    সাক্ষ্যদান: CE,SGS
    Model Number: CGF16-12-6

    প্রদান:

    Minimum Order Quantity: 1 set
    মূল্য: 18000
    Packaging Details: Seaworthy Wooden Case
    Delivery Time: 30 days
    Payment Terms: T/T; L/C
    Supply Ability: 10 sets/month
    এখন যোগাযোগ
    বিস্তারিত পণ্যের বর্ণনা
    Application: Liquid, Soda, Beverage, Juice Automatic Grade: Auto
    Bottle Type: PET, Can, Barrel Capacity: 4000bph
    Driven Type: Ectric, PLC Material: SS304
    Product name: Water Filling Machine
    বিশেষভাবে তুলে ধরা:

    water bottling machine

    ,

    নিজের মনের মধ্যে উপকরণ জল





    4000BPH Auto Water Bottle Filling Machine 3 in 1 PET Filling Line





    Quick Detail:



    1. Product: 4000bph Zhangjiagang water machine supplier

    2. Main Material: SS304

    3. Production capacity: 4000bph(500ml)

    4. Usage: Fill pure/mineral/distilled water and so on

    5. Dimension: 2100*1500*2200mm

    6. Warranty: 1year free

    4000bph Zhangjiagang water machine supplier





    Description:



    4000bph Zhangjiagang water machine supplier

    This CGF Wash-filling-capping 3-in-1unit: Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. Beverage Machinery can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.





    Characteristics:


    1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
    2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
    3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
    4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
    5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
    6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.





    Application:


    This machine is designed for bottling non-air drinks, such as pure water, mineral water etc, it
    integrates bottle washing, filling and capping into one monobloc unit.





    Specifications:



    4000bph Zhangjiagang water machine supplier

    1.Electrical elements



    PLC

    MITSUBI

    Frequency converter

    MITSUBI

    Touch screen

    WEINVIEW

    Contactor

    DELIXI

    Cylinder

    Airtac

    Pump

    Nan fang pump

    Switch

    Omron

    Electromotor

    Wannan Motor

    2.Suitable bottle:

    Round or square plastic bottle

    Bottle size

    250-2000ml

    Bottle body:Φ90mm,

    Bottle height H:150-320mm

    Bottle neck diameter:

    Φ20-Φ35mm

    Cap:

    Plastic screw cap

    DiameterΦ25-Φ35mm

    Cap height:15-25mm

    3.Main parameters:



    Production capacity:

    500ml,4000BPH

    Position:

    Washer16,filler12,capper6

    Filling temperature:

    Normal filling,gravity filling

    Air pressure:

    0.6mpa(self-prepare)

    4.Motor powder:



    Main motor: 1.5kw

    Capper loading: 0.09kw

    Washing pump: 0.37kw

    Filling pump: 4.23kw

    Convoying motor:0.55kw

    Air conveyor motor:0.75kw





    3) Pictures:

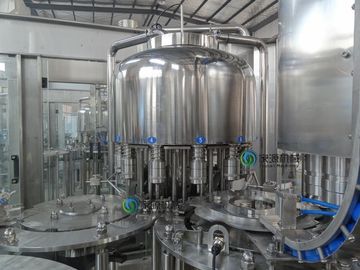

    Washing head

    3 in 1 Water Bottle Filling Machine 0

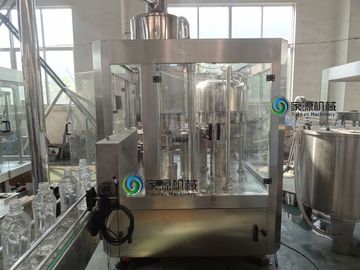

    Filling head

    3 in 1 Water Bottle Filling Machine 1

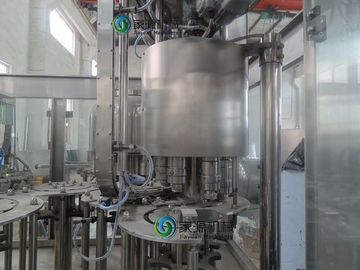

    Capping head

    3 in 1 Water Bottle Filling Machine 2





    Competitive Advantage:



    Jiayuan machinery co.,ltd is a professional manufacture of liquid packaging equipment.

    1. The company around 110 KM away from Shanghai, has convenient traffic.

    2. The company was established in 1999, has rich experience.

    3. We are an CE&SGS certified company.

    4. We can produce kind of filling&packing machine, such as

    1. Bottled water production line
    2. Carbonated soft drinks production line
    3. Hot-fill juice and tea production line
    4. 5 Gallon bottled water production line
    5. Water treatment machine and packing machine

    5. Jiayuan machinery co.,ltd can provide turn-key services for customers, from plant layout, equipment manufacturing, production line setup and operators training.
