RO Water Treatment System

2 Tons Water Purifying Machine , RO Water Treatment System

Quick Detail:

1. Capacity range: 2 tons per hour.
2. Main material: SUS304
3. Ultra filter membrane brand: Hydranautics
4. Main pump brand: Nanfang pump
5. Main electric component brand: Mitsubishi
6. Certificate: CE, SGS
7. Easy operate

2 Tons per hour SUS304 Mineral water treatment system

Description:

Features

1. Low power consumption can operate in normal temperature and low pressure, small size, simple structure, low investment.
2. The processing in only liquid transportation by pressure, so the flow chart is simple and easy to operate and manage.
3. Treatment capacity can be 1-50 tons per hour.

2. Summarization:

Ultra filtration is a purification, separation or concentration of semi permeable membrane in separation techniques for solution. After more than 20 years rapid development, it has become one of the widest techniques in membrane separation field. It widely uses in food and beverage, chemical electron, biological construction for environmental protection, etc.

 3. Ultra Filtration Process:

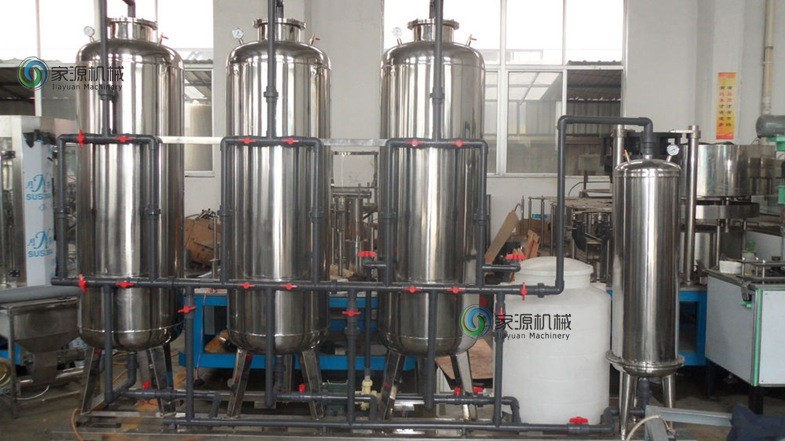

 1). Using the Pretreatment, Micro filter, UF, Ozone Generator for sterilization to produce the qualified natural mineral water.

2). The pretreatment device installs with multimedia filter, which is filled with refining Quartz Sand, to remove the large particles, silt particles, suspended solids, and other impurities.

3). The activated carbon filter can effectively remove the organic substance, odor, color, colloidal impurities.

4). 5μ precision filter can block the particle more than 5 micron-meter passing into next process.

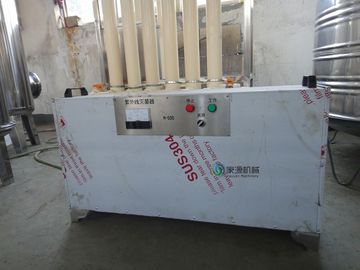

5). UV Sterilizer can kill the bacteria, virus, effectively.

6). 1μ security filter, mainly used to get rid of the smaller particles and remains of bacteria, virus.

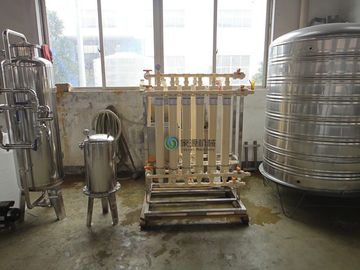

7). Ultra filtration is a separation process, with pore sizes in the range of 0.1 to 0.001 micron.  Typically, ultra filtration will remove high molecular weight substances, colloidal materials, and organic and inorganic polymeric molecules.  Low molecular weight organics and ions such as sodium, calcium, magnesium chloride, and sulfate can not be removed, so, it can make the finished water with no bacteria, clear and good tasty.

8). At terminal, there is an Ozone generator or Ultraviolet sterilizer for sterilization, keep water clean avoiding secondary pollution, ensuring high-quality finished water sterile and longer shelf-life.

Application

1. electronic industry
2. food and beverage industry
3. medicine industry
4. chemical industry
5. petroleum industry
6. pre-treatment of RO system and pure water treatment
7. water reclamation
8. biotechnology industry
9. surface water treatment

Specifications:

Complete mineral water treatment plant is consist of the following equipments

Competitive Advantage:

1. Stainless steel plate thickness of filters is 4mm, more durable.
2. Be apt to clean the inside with the manhole design.
3. Purified water high water level auto stop, low water level auto start
4. Protected when no power, poor power, larger electrical current short circuit, creep age of electricity
5. Machine component can be adjustable according to customer’s requirement.
6. More beautiful appearance.
7. Easy to backwash.
8. Multi-phases pump protected without water
